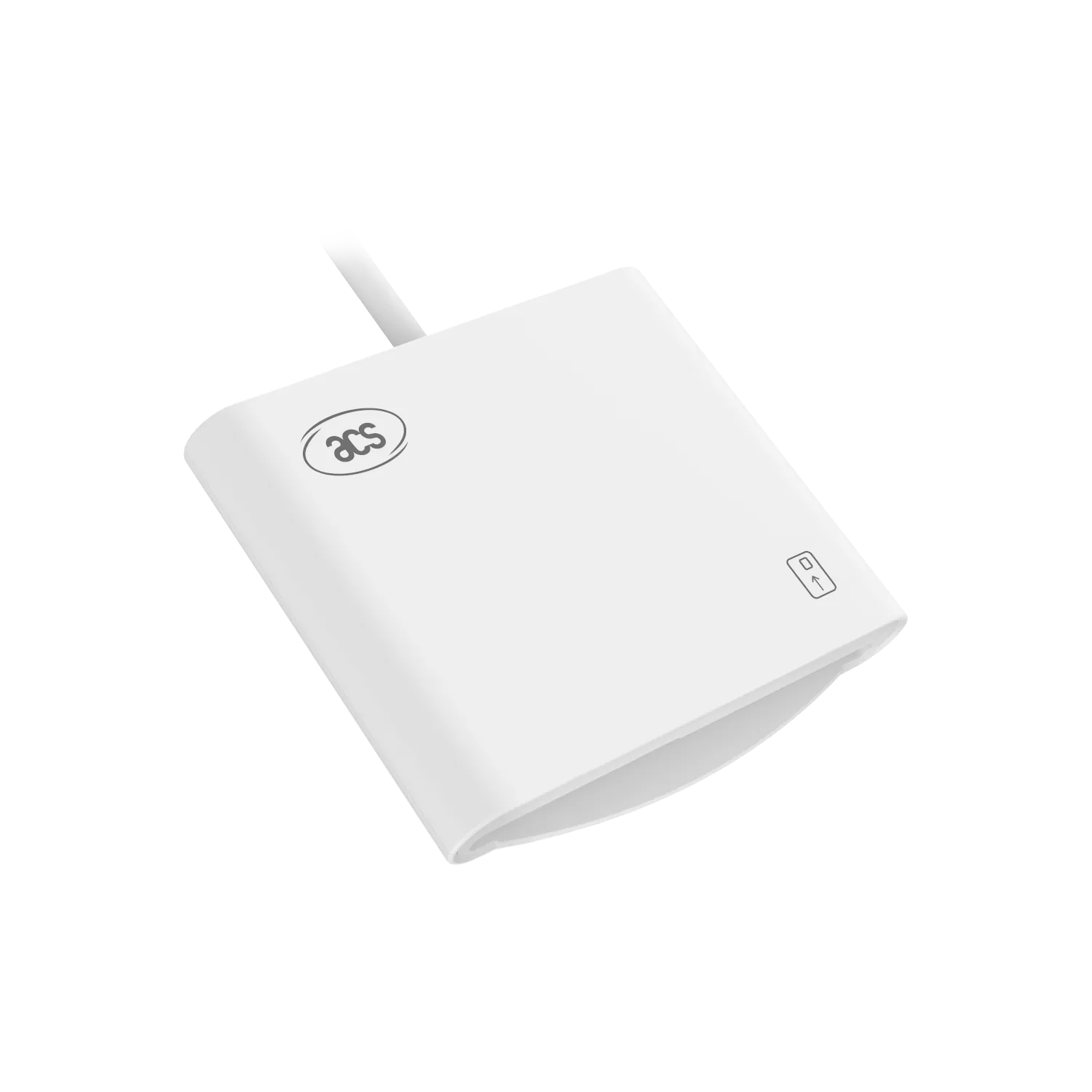

Introducing the ACR40U, ACS's latest compact highspeed USB contact smart card reader. It provides seamless support for ISO 7816 Class A, B, and C smart cards, microprocessor cards using T=0 and T=1 protocols, and a wide range of memory cards available in the market.
Features
- USB 2.0 Full Speed Interface
- Plug and Play – CCID support brings utmost mobility
- Smart Card Reader:
- Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
- Supports CAC
- Supports SIPRNET Card
- Supports MyKad
- Supports J-LIS Card
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- Supports PPS (Protocol and Parameters Selection)
- Features Short-Circuit Protection
- Application Programming Interface:
- Supports PC/SC
- Supports all major operating systems
- Windows®, Linux®, macOS, iOS, iPadOS, Android™, Solaris™
Technical Specs
| Dimensions (mm) | 55 mm (L) × 65.0 mm (W) × 9.0 mm (H) |
| Weight (g) | 40.0 g ± 5.0 g |
| Protocol | USB CCID |
| Connector Type | Standard Type A, Type C |
| Power Source | From USB Port |
| Speed | USB 2.0 Full Speed (12 Mbps) |
| Cable Length | 1 m, Fixed |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1; Memory Card Support |
| Others | Mykad, CAC, J-LIS, SIPRNET Card |
| Certifications/Compliance | EN62368/IEC 62368 CE FCC RoHS REACH EMV™ Level 1 (Contact) UL 62368 J-LIS KC PBOC Level 1(Contact) TAA UKCA UL VCCI WEEE USB 2.0 Full Speed Microsoft® WHQL |
| Device Driver Operating System Support | Windows® Linux® macOS IOS iPadOS Android™ Solaris™ |
